Brand Name : HuaXin
Model Number : HX130LX005R
Certification : ISO14001/ ISO9001/IATF16949
Place of Origin : China
MOQ : 1000
Price : $7.05
Payment Terms : T/T
Supply Ability : 500K pcs per month
Delivery Time : 4~6weeks
Packaging Details : blister+foam box+bubble bag+inside carton+master carton
Display Technology : AMOLED Display Module
Name : Touch Panel AMOLED
Display size : 1.3 inch
Resolution : 360*360
interface : MIPI/SPI/MCU
Driving IC : RM69330
Brightness : 350C/D
view angle : all
| Attribute | Value |
|---|---|
| Display Technology | AMOLED Display Module |
| Name | Touch Panel AMOLED |
| Display size | 1.3 inch |
| Resolution | 360*360 |
| Interface | MIPI/SPI/MCU |
| Driving IC | RM69330 |
| Brightness | 350C/D |
| View angle | All |
| Part No: | HX130LX005R |
| Display Mode | 1.3 inch AMOLED display |
| Outline size(mm) | 35.34mm*36.84mm |
| AA size(mm) | 32.94mm*32.94mm |
| Display dots | 360*360 |
| View Angle | ALL |
| Interface | MIPI |
| Brightness | 350C/D |
| Working temp | -20~70 |
| Storage temp | -30~80 |
| Driving IC | RM69330 |
The key advantages of AMOLED (Active-Matrix Organic Light-Emitting Diode) displays include:
AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT and has lower peak brightness in sustained use.
Huaxin Technology (Enshi) Co., LTD
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
|
|

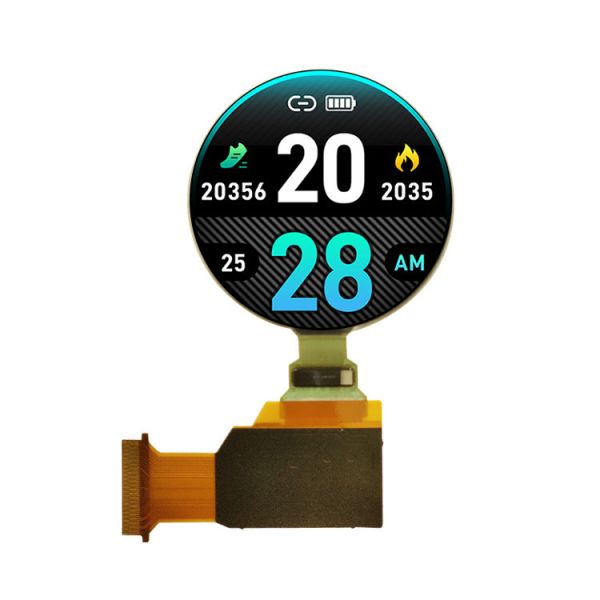

1.3 Inch Round Oled Display 360×360 Resolution SPI/MIPI/MCU Dual Interface For Smartwatch Images |
